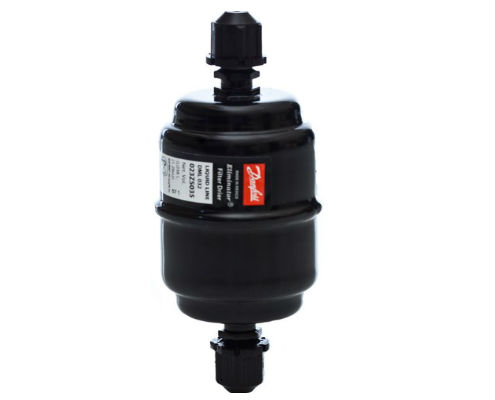

Danfoss DML Filter Drier Series
Danfoss DML filter driers are optimised for HFC refrigerants and mineral or benzene oils. The Danfoss DML filter driers are hermetic and approved for 46 bar, depending on type. The filter driers are delivered with flare or copper/copper plated steel connections.
Danfoss DML Filter Drier Features :
- High drying capacity avoiding the risk of acid formation in the refrigeration system
- All Danfoss filter driers have end caps designed for greater protection and easy removal
- Wide range with sizes from 3 to 75 cubic inches
- Powder paint surface for 500 hrs in salt spray (shell body)
Danfoss DML Filter Drier, flare connections
Optimized for HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. 100% 3Å Molecular Sieve. Temperature range: -40°C – +70°C.
| Product Model No. | Connection Size: inch |
| DML 032 | 1/4” |
| DML 033 | 3/8” |
| DML 053 | 3/8” |
| DML 083 | 3/8” |
| DML 084 | 1/2” |
| DML 163 | 3/8” |
| DML 164 | 1/2” |
| DML 165 | 5/8” |
| DML 304 | 1/2” |
| DML 305 | 5/8” |
Danfoss DML Filter Drier, copper solder connections
Optimized for HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. 100% 3Å Molecular Sieve. Temperature range: -40°C – +70°C.
| Product Model No. | Connection Size: inch |
| DML 032S | 1/4” |
| DML 053S | 3/8” |
| DML 083S | 3/8” |
| DML 084S | 1/2” |
| DML 163S | 3/8” |
| DML 164S | 1/2” |
| DML 165S | 5/8” |
| DML 304S | 1/2” |
| DML 305S | 5/8” |
| DML 307S | 7/8” |
